51 31 015 Repairing damage to windscreens caused by stone chips (clear and tinted laminated safety glass): Notes

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
  1. Repairs must be performed outside  the field of vision only (see illustration).
  2. Only damage to the outer area of the windscreen may be repaired.
  3. The inner window pane and the plastic film between inner and outer window panes must not be damaged.
  4. Repairing should be carried out as soon as possible after occurrence of the damage.
  5. The penetration of moisture or dirt must not be visible in the damaged spot.
  6. Impact spot cavities must not exceed a diameter of 5 mm.
  7. Cracks leading away from the impact spot must not be longer than 50 mm.
  8. Cracks must not reach the rubber seal or frame trim.
  9. Visibility through the repaired surface must be clear, transparent and with minimum distortion.
  10. Cover engine compartment lid and front side panels with protective covers.

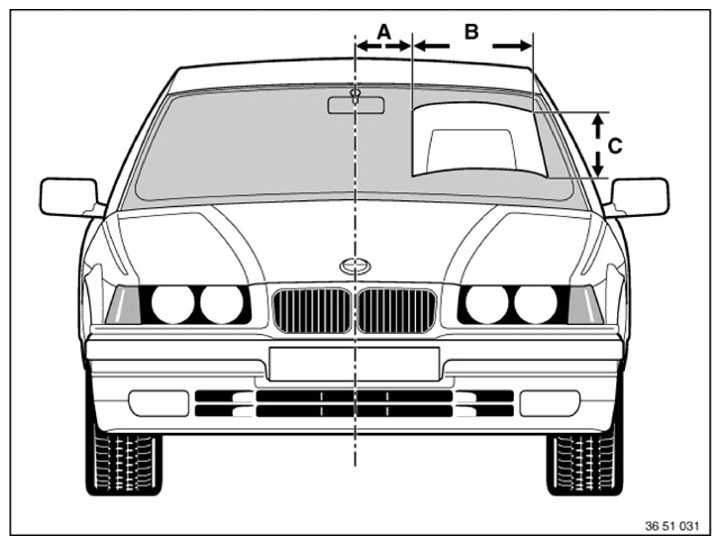

    11. Fig 1: Identifying Repair Area Of Windscreen (Outside Of Field Of Vision)
    G11152140Courtesy of BMW OF NORTH AMERICA, INC.
