51 13 001 Removing and installing/replacing front radiator grille, middle left or right

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Protect bumper trim against paint damage.

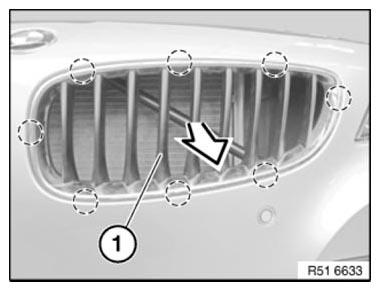

Release catches at marked point by pulling gently in direction of arrow and remove front radiator grille middle (1).

Fig 1: Removing Front Radiator Grille (Middle)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All catches and guides on middle front grille must not be damaged.

Press on chrome ring to push front radiator grille (2) into bumper trim.

Fixtures (1) must engage correctly.

Fig 2: Pushing Front Radiator Grille Into Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
