51 16 063 Removing and installing or replacing interior rearview mirror

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Version with remote control for central locking:

If necessary, disconnect negative lead from BATTERY .

Expand two-part cover (1) by pressing from below. Feed out split cover (1) on mirror base plate in each case remove in outward direction.

If necessary, disconnect plug connection underneath.

Fig 1: Removing Two-Part Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

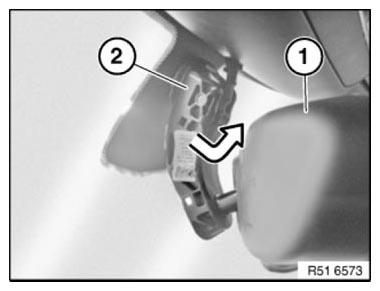

Do not pull mirror (1) off windscreen; instead, carefully turn approx. 45° clockwise to snap out of mirror base (2).

Fig 2: Turning Mirror Clockwise

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit mirror base plate on mirror base turned through approx. 45° (see illustration) and snap audibly into place by turning counterclockwise carefully in direction of arrow.

Fig 3: Installing Mirror Base Plate On Mirror Base

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace with version with remote control for central locking:

Initialize all transmitters (ignition keys).

Only when replacing mirror with FLA (high-beam assistance) for vehicles from build date 09/2009 onward:

Replace CAN connector (3-pin).

Unpin and dispose of existing connector.

Install newly coded connector part number 6 905 977 (sourcing reference: BMW Parts Department) in same way as existing connector.
