51 71 447 Removing and installing or replacing panel for cover on left or right side member

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

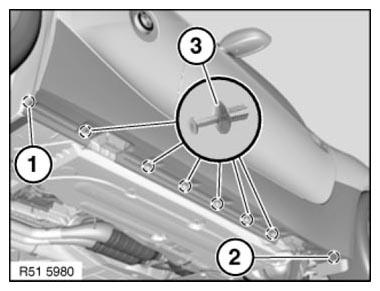

Release screws (1 and 2).

Release clips (3).

Fig 1: Identifying Screws And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

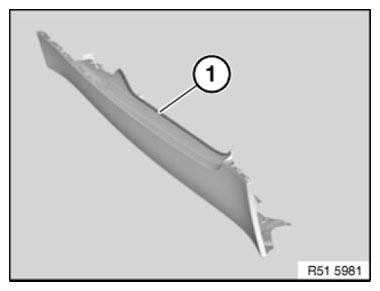

Unclip panel (1) in areas (A and B) from holders in direction of arrow.

Release panel (1) at clips (2) and remove in direction of arrow.

Installation:

Catches of panel (1) in areas (A and B) must not be damaged.

Fig 2: Removing Panel From Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Holders (1 and 2) must not be damaged.

If necessary, detach clips (3) from body and attach to panel for cover on side member.

Fig 3: Identifying Holders And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal (1) is correctly seated on body and after assembly pay attention to 41 00... BODY GAP DIMENSIONS .

Fig 4: Identifying Seal On Body

Courtesy of BMW OF NORTH AMERICA, INC.
