51 71 360 Removing and installing/replacing seal for rear lid
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- If necessary, open folding roof
- If necessary, open luggage compartment lid

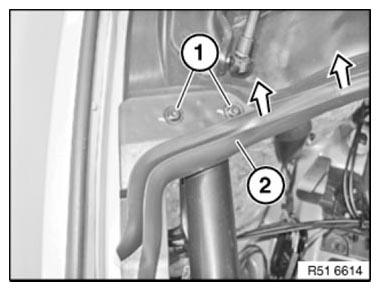

The right side is removed in the same way as the left side.
Release screws (1).
Remove seal (2).

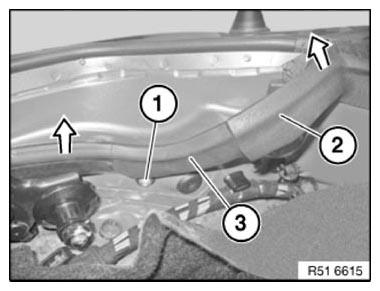

The right side is removed in the same way as the left side.
Release screw (1).
Lever off seal (2).
Lever off seal (3).
Installation:
- Observe FITTING OF SEALS
