51 11 180 Removing and installing/replacing trim grille in bumper trim
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front BUMPER TRIM

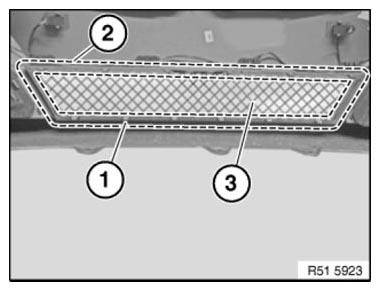

Release fastening elements in area (1).
Separate cable holder (2) from trim grille (3).
Remove trim grille (3).
