51 47 211 Replace the locking unit for the left or right luggage compartment cover

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For purposes of clarity, illustration shows luggage compartment cover removed.

Release screws (1).

Push the latch mechanisms (2) down and remove the inner and outer locking unit (3).

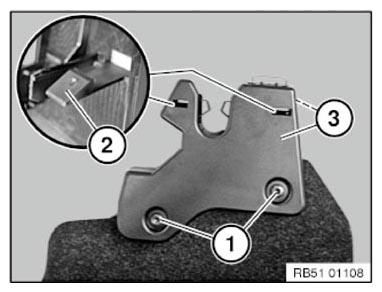

Fig 1: Identifying, Locking Unit, Latch Mechanisms And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
