51 47 210 Removing and installing/replacing trunk trim panel on left side panel
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

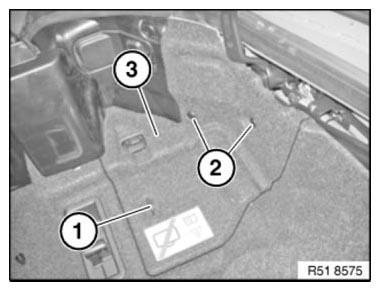

Open spagnolet fastener (1).
Lever out expander rivet underneath.
Lift out expanding rivets (2).
Feed out side trim panel (3).
Installation:
Luggage compartment rubber seal must be correctly seated over luggage compartment trim panel (3).
