51 47 202 Removing and installing (replacing) cover for luggage compartment
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

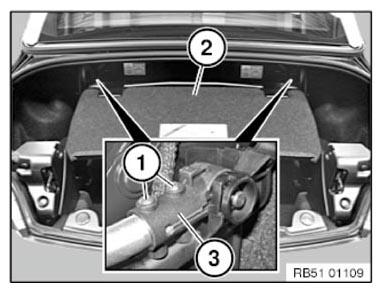

Release screws (1).
Pull cover (2) out of holder (3) and remove.
Installation note:
Loosen the holder (3) from the counter support and attach to cover (2).
Insert screws (1), but do not tighten.
Snap cover (2) with holder (3) into counter support.
Tighten down screws (1).
