51 47 151 Removing and installing/replacing left/right luggage compartment wheel arch panel

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR LUGGAGE COMPARTMENT SIDE MEMBER

Partially detach seal (1).

Lift out expanding rivets (2).

Remove panel for luggage compartment wheel arch panel (3).

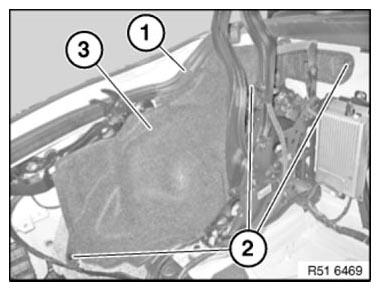

Fig 1: Identifying Luggage Compartment Wheel Arch Panel With Expanding Rivets And Seal

Courtesy of BMW OF NORTH AMERICA, INC.
