51 47 065 Removing and installing/replacing cover at front left or right entrance
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Risk of damage!
Do not raise cover (2) over entire length simultaneously.

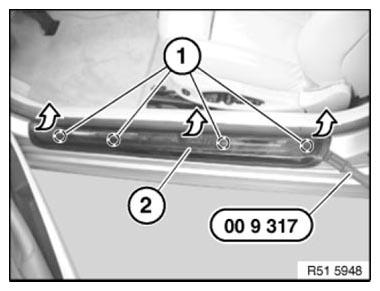

Unclip clips (1) for cover (2) with special tool 00 9 317 .
Remove cover (2).
Installation:
Lever out remaining clips (1) in retaining holes with a suitable tool.

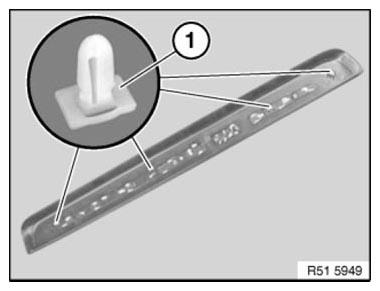

If necessary, slide missing clips (1) into clip mounts of cover.
Clip cover into retaining holes.
NOTE:
Clips (1), clip mounts and retaining lugs of cover must not be damaged.
If necessary, replace faulty clips (1) or cover.
