61 61 041 Replacing both windscreen wiper blades

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Make sure the wiper arm does not contact the windscreen without its wiper blade.
NOTE: In the event of a customer complaint  regarding the cleaning or wiping performance or noise build-up (scratching, squeaking) by the wiper blades, proceed as follows: First check  whether the complaint is caused by dirt (preservation wax on new vehicles, resins or other environmental influences) on the windscreen; if necessary, clean the windscreen thoroughly  ! Replace the wiper blades only if cleaning the windscreen fails to remedy the situation.

Press retaining spring in direction of arrow.

Pull the wiper blade toward the wiper arm and slip it out.

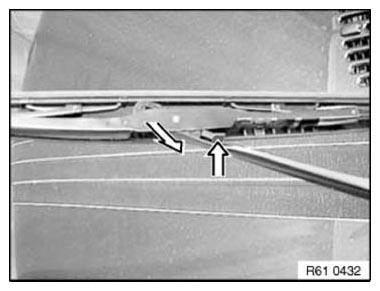

Fig 1: Pressing Windscreen Wiper Blade Retaining Spring
G11153309Courtesy of BMW OF NORTH AMERICA, INC.
