61 71 015 Removing and installing/replacing a jet nozzle in windscreen washer system
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The jet nozzles of the windscreen washer system are preset at the factory and cannot be readjusted.

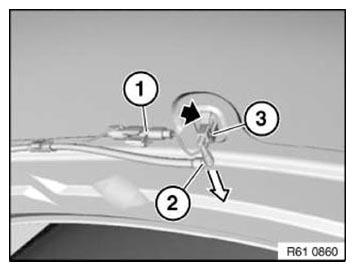

Unfasten plug connection (1) and disconnect.
Detach connecting piece (2) in direction of arrow from spray nozzle of windscreen washer system (3).
Unlock spray nozzle (3), press out through opening and remove.
Installation:
Make sure spray nozzle of headlight washer system (3) is correctly seated.
Ensure hose is laid without kinks.
