64 11 970 Replacing fogging sensor

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

WARNING: Make sure rooms are well ventilated when working with adhesive remover indoors.

IMPORTANT: Do not under any circumstances use paint thinner to clean the bonding surface.

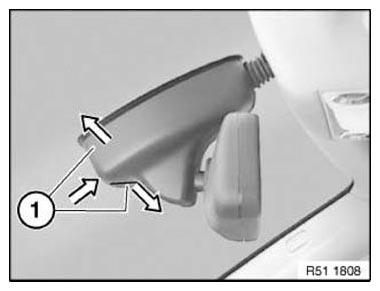

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

Fig 1: Removing Rain/Light Sensor Two-Part Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

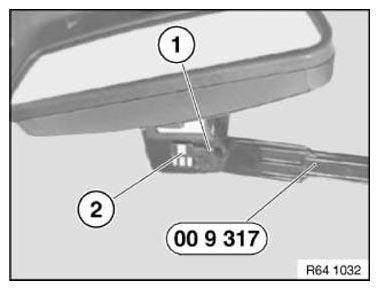

Disconnect plug connection (1).

NOTE: If necessary, carefully heat fogging sensor (2) with a hot air blower to approx. 40-60°C.

Lift off fogging sensor (2) with special tool 00 9 317 and slowly pull off from windshield.

Fig 2: Lifting Fogging Sensor Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bonding surface must be dry and free of dust and grease.

Clean bonding surface with adhesive remover.

After cleaning, do not touch bonding surface with bare hands.

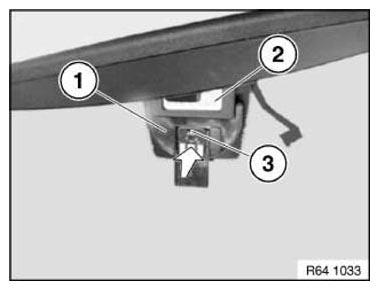

Pull off protective film completely from fogging sensor (3).

Place mounting template (1) as pictured on rain sensor (2).

Press fogging sensor (3) in direction of arrow with a contact pressure of ≥15 N/cm² onto inside of windshield.

NOTE: Firm thumb pressure attains approx. 30 N/cm² .

Fig 3: Pressing Fogging Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove mounting template (1) carefully from fogging sensor (3).
