61 31 492 Replacing level switch for windscreen washer system

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Unlock retaining lugs (1).

Remove fluid tank for windscreen washer system (2).

Fig 1: Identifying Retaining Lugs And Windscreen Washer System Fluid Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Turn level switch for windscreen washer system (2) in direction of arrow through approx. 90° and pull out downwards.

Installation:

Make sure level switch for windscreen washer system (2) is correctly seated.

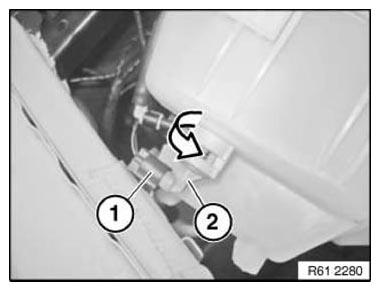

Fig 2: Turning Windscreen Washer System Level Switch

Courtesy of BMW OF NORTH AMERICA, INC.
