61 31 327 Removing and installing/replacing gearshift lever knob of gear selector switch (N54)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

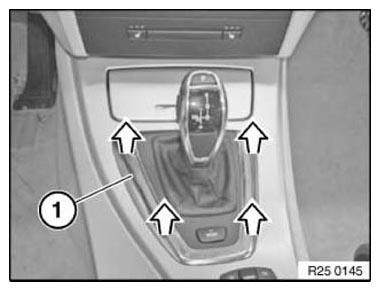

Release installation frame (1) from center console.

Fig 1: Removing Center Console Installation Frame

Courtesy of BMW OF NORTH AMERICA, INC.

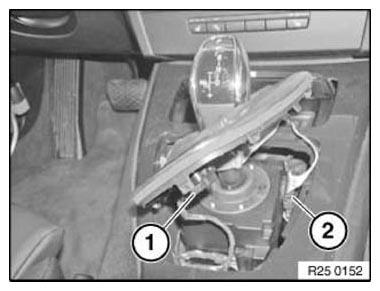

Disconnect plugs (1) and (2).

Fig 2: Identifying Gearshift Lever Knob Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

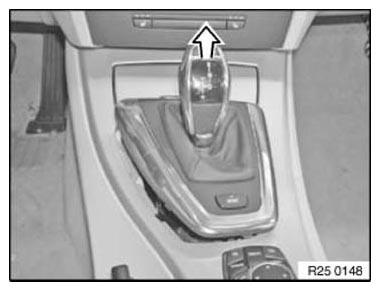

NOTE: Do not twist gearshift lever knob during removal as this would cause the anti-twist lock in the knob to shear off.

Tug firmly to remove button.

Installation note:

Fit gearshift lever knob on shift lever, align and press on until it snaps noticeably into place.

Fig 3: Removing Gearshift Lever Knob

Courtesy of BMW OF NORTH AMERICA, INC.
