61 31 310 Replacing brake light switch

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

NOTE: Brake light switch (2) is situated above the brake pedal.

Disconnect plug connection (1).

Pull brake light switch (2) in direction of arrow out of brake light switch holder (3).

Press catches (4) together and unclip brake light switch holder (3) from brake pedal.

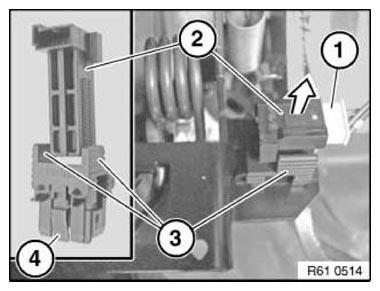

Fig 1: Removing Brake Light Switch From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Depress brake pedal.

Slide brake light switch (2) as far as it will go into brake light switch holder (3).

Grip brake light switch holder (3), slowly return brake pedal to starting position and pull back to stop .
