61 31 299 Removing and installing/replacing clutch switch module

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

NOTE: For purposes of clarity, the clutch master cylinder is shown removed.

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.

Unlock plug (4) and disconnect from housing (3).

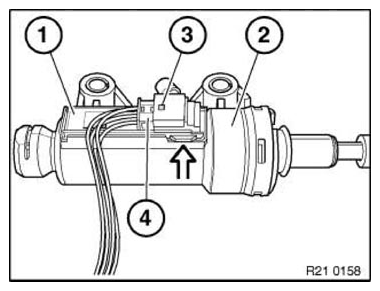

Fig 1: Removing Clutch Switch Module From Clutch Master Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clutch switch module is secured against incorrect installation.

Clutch switch module must snap audibly into place.

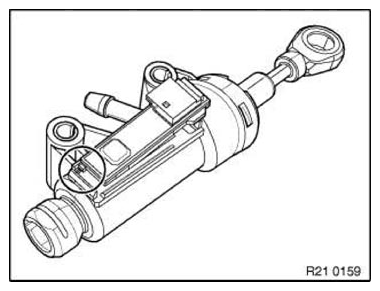

Fig 2: Identifying Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.
