61 31 270 Replacing switch for reversing light

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The installation location of the reversing light switch can vary, depending on the transmission model.

Necessary preliminary tasks:

If necessary, remove REAR UNDERBODY PROTECTION

Version A:

Disconnect plug connection (1).

Release switch for reversing light (2).

Tightening torque 61 31 2AZ .

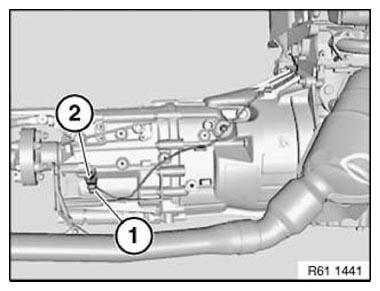

Fig 1: Identifying Reversing Light Switch And Plug Connection (Version A)

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

Disconnect plug connection (1).

Release switch for reversing light (2).

Tightening torque 61 31 2AZ .

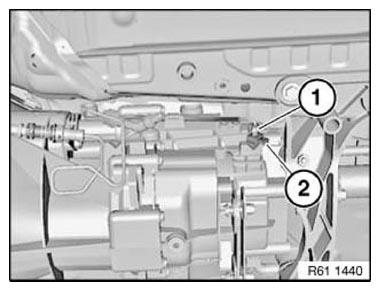

Fig 2: Identifying Reversing Light Switch And Plug Connection (Version B)

Courtesy of BMW OF NORTH AMERICA, INC.
