61 31 243 Removing and installing/replacing Hall switch

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR LUGGAGE COMPARTMENT SIDE MEMBER ON LEFT

Disconnect plug connection (1).

Unlock Hall switch (2) and in remove in direction of arrow.

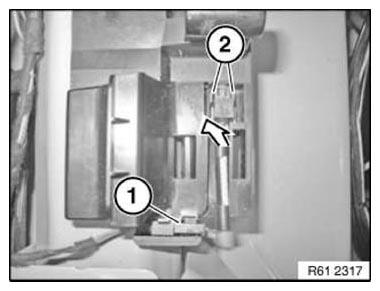

Fig 1: Removing Hall Switch

Courtesy of BMW OF NORTH AMERICA, INC.
