61 31 079 Removing and installing/replacing switch for hazard warning flashers/central locking

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Carefully lever out switch for hazard warning system/central locking (1) with special tool 00 9 341 in direction of arrow.

Remove switch for hazard warning system/central locking (1) in direction of arrow and disconnect plug connection behind.

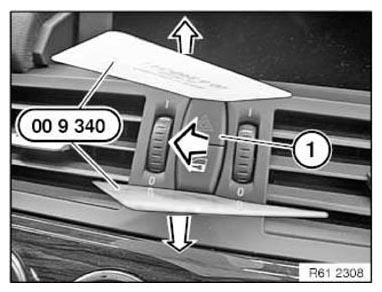

Fig 1: Removing Hazard Warning System/Central Locking Switch Using Special Tool (00 9 340)
G11153249Courtesy of BMW OF NORTH AMERICA, INC.
