61 31 062 Removing and installing/replacing button for steering wheel heating

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Lever out button for steering wheel heating (1) with suitable tool in direction of arrow.

Disconnect plug connection behind and remove button for steering wheel heating (1).

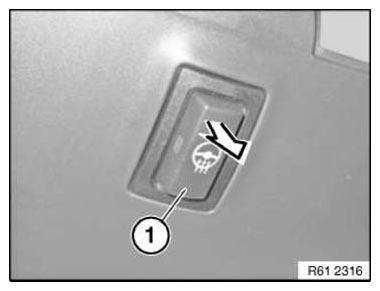

Fig 1: Removing Steering Wheel Heating Button
G11153229Courtesy of BMW OF NORTH AMERICA, INC.
