61 31 038 Removing and installing (replacing) switch for passenger airbag deactivation

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

WARNING:

Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt pretensioners.

Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD

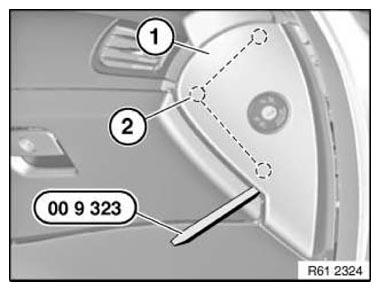

Carefully lever out side cover (1) with special tool 00 9 323 at points (2).

Fig 1: Removing Passenger Airbag Side Cover Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

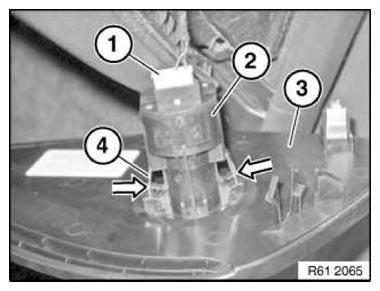

Disconnect plug connection (1).

Unlock catches (4) in direction of arrow.

Feed switch for passenger airbag deactivation (2) out of side cover (3).

Installation:

Make sure switch for passenger airbag deactivation (2) is correctly seated in side cover (3).

Fig 2: Pressing Passenger Airbag Deactivation Switch Catches

Courtesy of BMW OF NORTH AMERICA, INC.
