61 13... Socket housings, 5-pin, 8-pin, System MQS/MPQ

Manufactured by AMP  : The following contact types without strand sealing can be fitted in the connector housings:

• MQS (Micro Quadlock System)
• MPQ, width 2.8 mm (Micro Power Quadlock)
• MPQ, width 5.2 mm (Micro Power Quadlock)

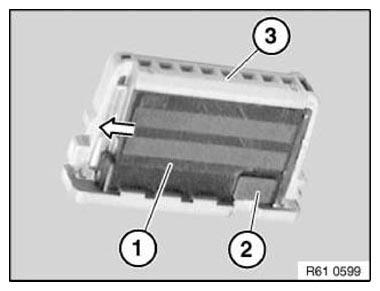

Socket housing, 5-pin (Hybrid System MQS/MPQ)

Raise fastener (1) over retaining lug (2) and pull off from contact carrier (3).

Fig 1: Removing Socket Housing From Contact Carrier (5-Pin)

Courtesy of BMW OF NORTH AMERICA, INC.

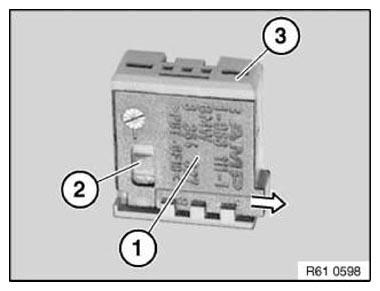

Socket housing, 8-pin (MQS):

Raise fastener (1) over retaining lug (2) and pull off from contact carrier (3).

Fig 2: Removing Socket Housing From Contact Carrier (8-Pin)

Courtesy of BMW OF NORTH AMERICA, INC.

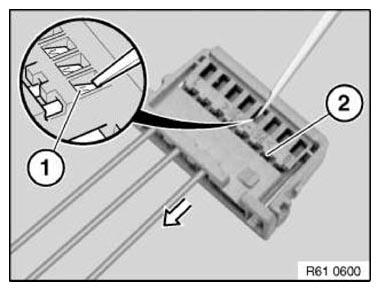

Hold down retaining hook (1) of contact and pull cable with contact as far as secondary lock (2).

Fig 3: Holding Secondary Lock Retaining Hook Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

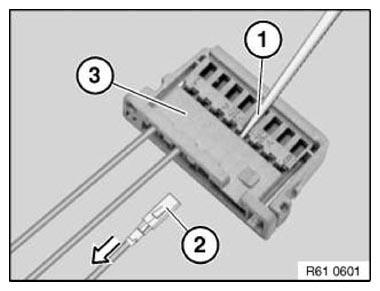

Hold down retaining hook in secondary lock (1) again and pull cable with contact (2) completely out of contact carrier (3).

Fig 4: Holding Secondary Lock Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.
