61 14... Removing and installing/replacing engine compartment B+ terminal

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read fault memory.
Clamp off BATTERY NEGATIVE LEAD

Remove cover (1).

Fig 1: Identifying Engine Compartment Terminal Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 61 12 4AZ .

Disconnect battery positive leads (2).

Release screw (3).

Remove B+ terminal.

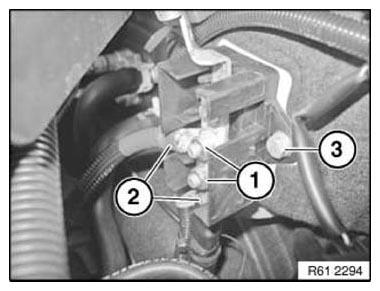

Fig 2: Identifying Engine Compartment Battery Positive Leads, Screw And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
