61 14 010 Removing and installing/replacing distribution box
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INFORMATION FOR HANDLING VEHICLE BATTERY .
Necessary preliminary tasks:
- Clamp off BATTERY NEGATIVE LEAD

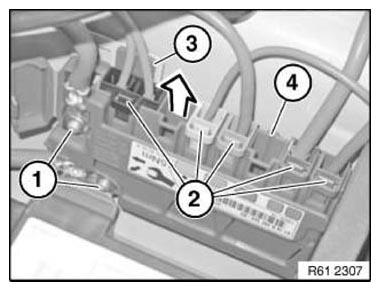

Unscrew nuts (1).
Tightening torque 61 12 1AZ .
Unlock plug connections (2) and disconnect.
Unlock retaining clip (3).
Remove distribution box (4) in direction of arrow.
Installation:
Make sure distribution box (4) is correctly seated.
