61 35 970 Removing and installing/replacing luggage compartment aerial for comfort access system

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL

Disconnect plug connection (1).

Unlock and remove aerial for comfort access system (2) from holder (3).

Installation:

Make sure interior aerial for comfort access system (2) is correctly seated in designated holder (3).

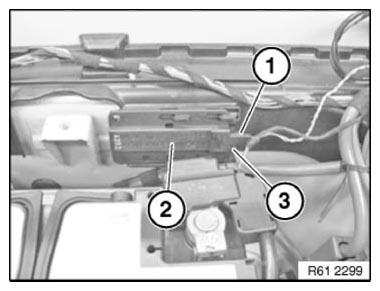

Fig 1: Identifying Comfort Access System Aerial, Holder And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
