61 35 954 Removing and installing/replacing interior aerial for comfort access system

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

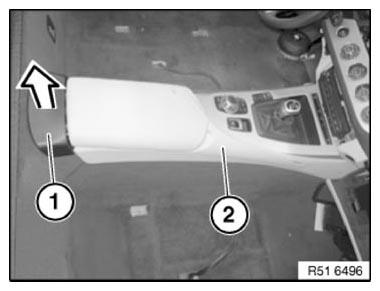

Remove rear cover (1) from center console (2) towards top.

Disconnect plug connection behind.

Fig 1: Removing Center Console Rear Cover

Courtesy of BMW OF NORTH AMERICA, INC.

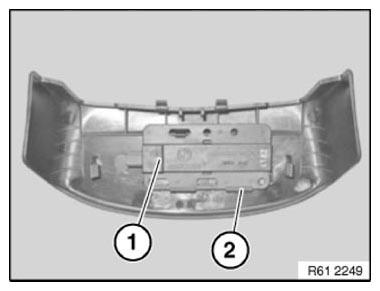

Unlock and remove interior aerial for comfort access system (1) from holder (2).

Installation:

Make sure interior aerial for comfort access system (1) is correctly seated in designated holder (2).

Fig 2: Identifying Comfort Access System Interior Aerial And Holder

Courtesy of BMW OF NORTH AMERICA, INC.
