61 35 177 Removing and installing (replacing) rain/light sensor

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

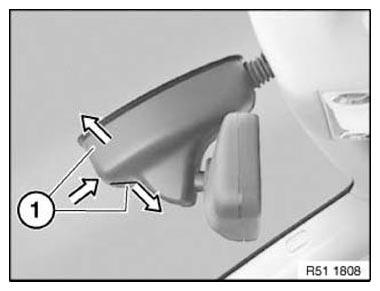

Fig 1: Removing Rain/Light Sensor Two-Part Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

Installation note:

Do not damage optical element covered by rain/light sensor (2).

If necessary, initialize RAIN/LIGHT SENSOR .

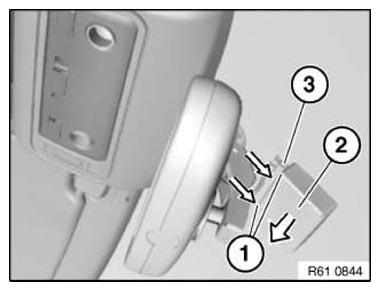

Fig 2: Removing Rain/Light Sensor Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
