61 35 146 Removing and installing/replacing Convertible top module

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove RIGHT LOADING SILL END COVER

Unlock plug connections (1) and disconnect.

Pull Convertible top module (2) out of device holder (3).

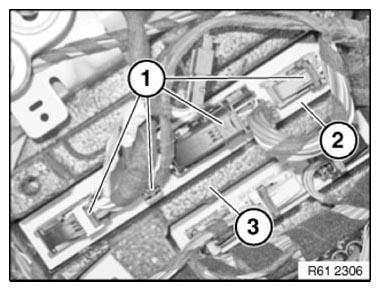

Fig 1: Identifying Convertible Top Module, Plug Connection And Device Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
