61 35 115 Removing and installing/replacing footwell module

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
Remove TRIM PANEL FOR PEDAL ASSEMBLY

Unlock plug connections (1) and disconnect.

Unclip footwell module (2) at points (3).

Carefully pull footwell module (2) out of device holder (4) in direction of arrow.

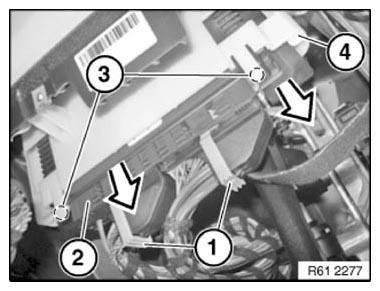

Fig 1: Removing Footwell Module From Device Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove footwell module (2).

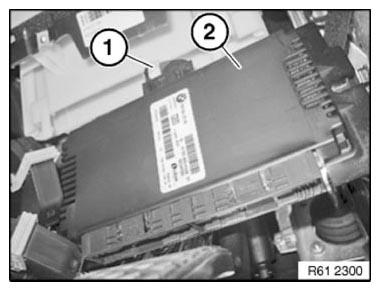

Fig 2: Identifying Footwell Module And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
