61 35 015 Removing and installing (replacing) control unit for Car Access System

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
Remove TRIM PANEL FOR PEDAL ASSEMBLY

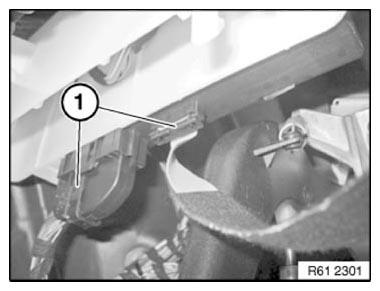

Unlock plug connections (1) and disconnect.

Fig 1: Identifying Car Access System Control Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

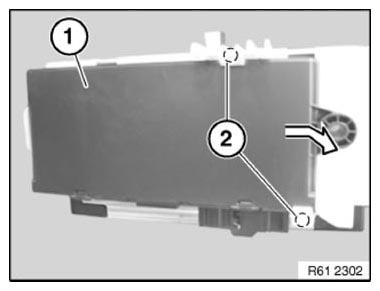

Unlock control unit for Car Access System (1) at points (2).

Remove control unit for Car Access System (1) in direction of arrow.

Fig 2: Removing Car Access System Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

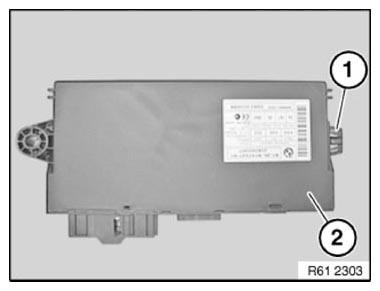

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.

Fig 3: Identifying Car Access System Control Unit Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
