61 12 062 Replacing wiring harness for front bumper
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .
Necessary preliminary tasks:
- Remove FRONT BUMPER TRIM .

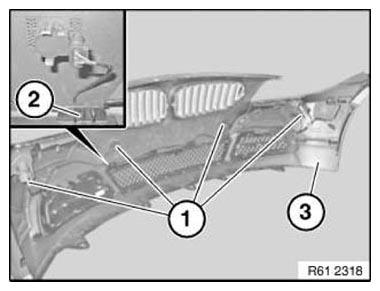

Unlock and disconnect plug connections (1) of all four ultrasonic transducers.
Unclip wiring harness (2) from bumper trim (3).
Remove wiring harness (2) from bumper trim (3).
Remove PDC. See FRONT ULTRASONIC SENSOR (SIDE) and FRONT ULTRASONIC SENSOR (CENTER) .
Installation:
Make sure wiring harness (2) is laid correctly.
