61 12 004 Replacing positive battery cable (from luggage compartment cable connector to engine bulkhead cable connector)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Observe SAFETY INFORMATION FOR HANDLING VEHICLE BATTERY .

Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL
Disconnect BATTERY EARTH LEAD

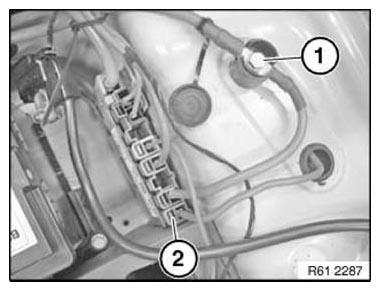

Release screw (1).

Tightening torque 61 12 3AZ .

Unfasten plug connection (2) and disconnect.

Fig 1: Identifying Luggage Compartment Battery Cable Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

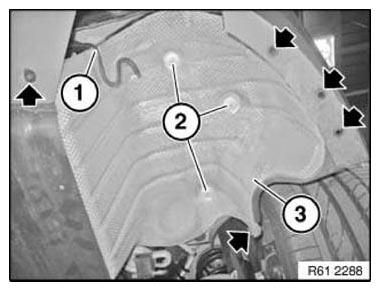

Feed out the vacuum hose (1).

Unscrew nuts (2).

Unscrew all bolts.

Remove heat shield (3) downwards.

Fig 2: Locating Heat Shield Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

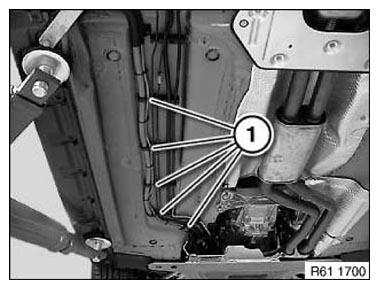

Feed out positive battery cable (1) downwards.

Fig 3: Identifying Battery Positive Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Release cable clip and remove cover (2).

Fig 4: Identifying Cable Clip Cover And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

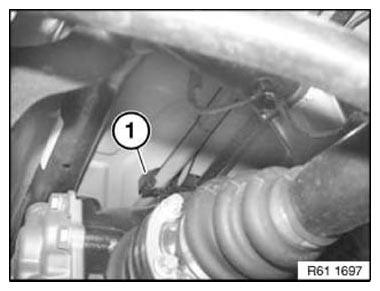

Release cable clip (1).

Fig 5: Identifying Battery Cable Clip

Courtesy of BMW OF NORTH AMERICA, INC.

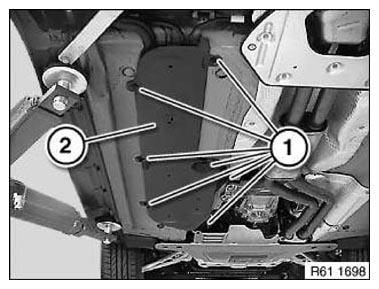

Unscrew nuts (1).

Remove shaft cover (2).

Fig 6: Identifying Shaft Cover And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

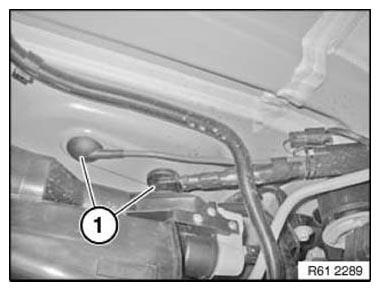

Release cable clip (1).

Fig 7: Identifying Positive Battery Cable Clips

Courtesy of BMW OF NORTH AMERICA, INC.

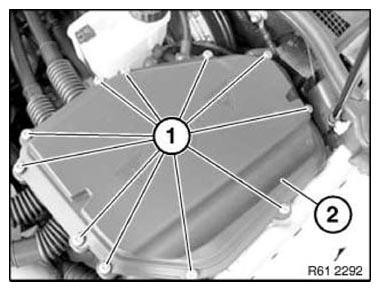

Release screws (1).

Remove electronics box lid (2).

Fig 8: Identifying Electronics Box Lid And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

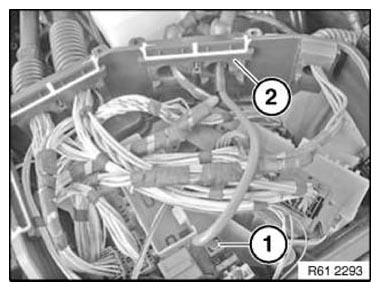

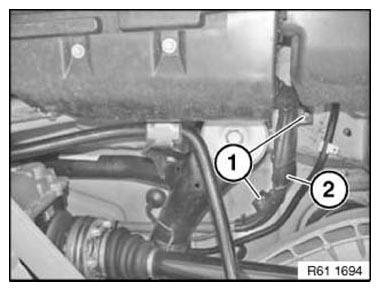

Unfasten plug connection (1) and disconnect.

Take the positive battery cable with wiring harness grommet (2) from the electronics box.

Installation note:

Make sure wiring harness grommets (2) are correctly seated in electronics box.

Fig 9: Identifying Positive Battery Cable Plug Connection And Wiring Harness Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

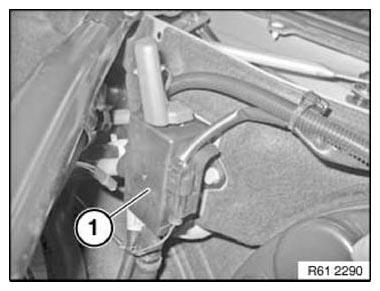

Remove the protective cap (1) from the positive battery connection point.

Fig 10: Identifying Positive Battery Connection Point Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

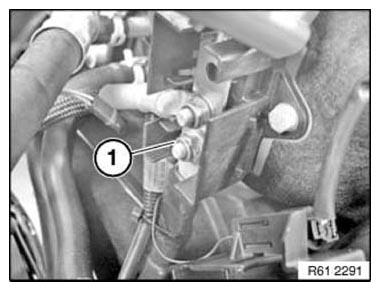

Slacken nut (1).

Tightening torque 61 12 2AZ .

Remove the positive battery cable downwards.

Fig 11: Identifying Positive Battery Cable Nut

Courtesy of BMW OF NORTH AMERICA, INC.
