36 11 533 Removing and installing/replacing RDC wheel electronics (2nd generation/3rd generation)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Before removing or refitting, check which generation of wheel electronics is fitted!

If the wheel electronics have been removed, the complete valve must be replaced.

NOTE: There are two different wheel electronics. Generation 2 wheel electronics must be used with RDC-01 and RDC-02 from model year 03/06.

Generation 3 wheel electronics must be used with RDC-LC from model year 09/09 (all E9x) and from model year 09/2010 (all E7x/E8x).

If a tire sealant has been used, replace the wheel electronics.

When a tire has been removed, do not clean the rim with installed wheel electronics with high-pressure cleaning equipment.

Do not treat wheel electronics with solvents, cleaning agents etc. If dirt contamination, wipe with a clean cloth only.

Before the installation of new wheel electronics with valve, thoroughly clean the valve bore of the wheel rim.

Do not clean wheel electronics with compressed air.

When tire sealant is used, the installed wheel electronics must necessarily be replaced.

Necessary preliminary tasks:

Labelling of generation 2.3 wheel electronics

  1. Transmission frequency of wheel electronics
  2. Large Torx socket screw
  3. BMW part number
  4. Tightening torque of Torx screw and union nut
  5. Width across flats of union nut
  6. Serial number of wheel electronics
  7. Production date of wheel electronics

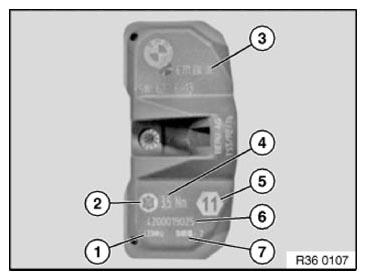

Fig 1: Identifying Labels On Generation 2.3 Wheel Electronics
G11151450Courtesy of BMW OF NORTH AMERICA, INC.

Labelling of generation 2.4 and 3.3 wheel electronics for

  1. Data Matrixcode
  2. BMW part number
  3. FCC ID = radio authorization
  4. Wheel electronics ID
  5. Transmission frequency
  6. Pressure sensor
  7. Width across flats of union nut
  8. Tightening torque
  9. Production date of wheel electronics

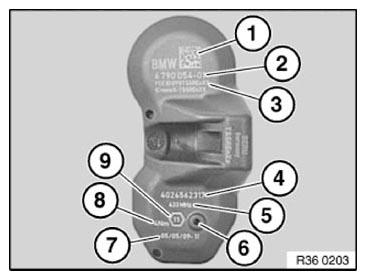

Fig 2: Identifying Labels On Generation 2.4 And 3.3 Wheel Electronics
G11151451Courtesy of BMW OF NORTH AMERICA, INC.

Labelling of generation 3.4/3.41 wheel electronics

  1. FCC ID = radio authorization
  2. Tightening torque
  3. Pressure sensor
  4. Data Matrixcode
  5. Production date of wheel electronics
  6. Transmission frequency
  7. Wheel electronics ID
  8. Width across flats of union nut
  9. BMW part number

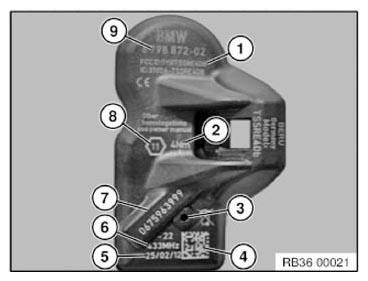

Fig 3: Identifying Labels On Generation 3.4/3.41 Wheel Electronics
G11151452Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The following images shown the removal and installation of generation 3 wheel electronics only. The instructions also apply without alteration to the 2nd generation wheel electronics!

Removing wheel electronics

Release union nut (1).

Fig 4: Identifying Wheel Electronics Union Nut
G11151453Courtesy of BMW OF NORTH AMERICA, INC.

Remove wheel electronics and valve (1) from valve hole.

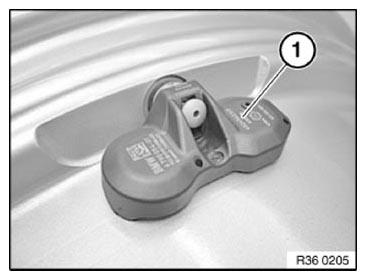

Fig 5: Identifying Valve
G11151454Courtesy of BMW OF NORTH AMERICA, INC.

Using suitable pliers (2), unscrew valve (1) from the thread of the square-head bolt (3), while holding the wheel electronics module (4) firm. Completely unscrew valve (1).

Remove square-head bolt from wheel electronics holder.

Installation note:

The valve must be replaced!

Failure to replace the part leads to leaks!

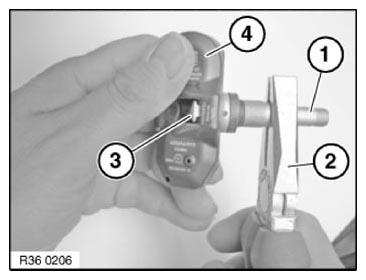

Fig 6: Removing Valve From Thread Of Square-Head Bolt Using Suitable Pliers
G11151455Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Before the installation of new wheel electronics with valve, thoroughly clean the valve bore of the wheel rim!

Also make sure that the valve bore has been deburred.

Installing wheel electronics

Insert new square-head bolt (1) in wheel electronics module (2).

Screw single-use valve insert (3) three turns onto square-head bolt (1).

NOTE: Make sure square bolt-head (1) is correctly seated in wheel electronics mounting.

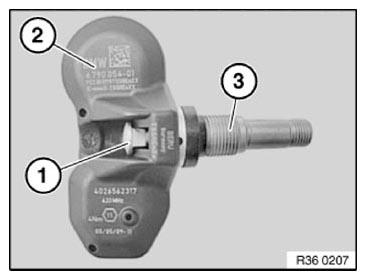

Fig 7: Identifying Wheel Electronics Module Square-Head Bolt
G11151456Courtesy of BMW OF NORTH AMERICA, INC.

Insert valve insert with wheel electronics into cleaned valve bore.

Both outer feet on the underside of the wheel electronics module must be resting against the rim wall.

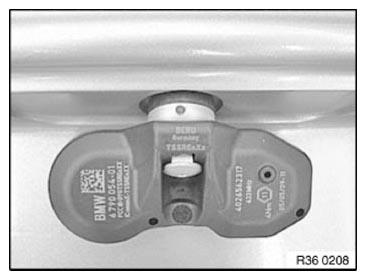

Fig 8: Identifying Wheel Electronics Valve Insert
G11151457Courtesy of BMW OF NORTH AMERICA, INC.

Screw on union nut (1) by hand as far as it will go.

Tighten union nut until the inner strip-off ring breaks.

Then fully tighten union nut (1).

Tightening torque 36 11 1AZ .

Attention!

Fixing must not under any circumstances be retightened!

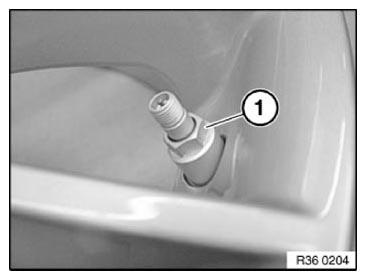

Fig 9: Identifying Union Nut
G11151458Courtesy of BMW OF NORTH AMERICA, INC.

The square-head bolt should be located precisely in the wheel electronics mounting.

The wheel electronics should still be resting evenly against the wheel rim after tightening.
