36 11 130 Removing and installing/replacing front left RDC trigger transmitter

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front left WHEEL ARCH PANEL .

Unclip RDC transmitter (1).

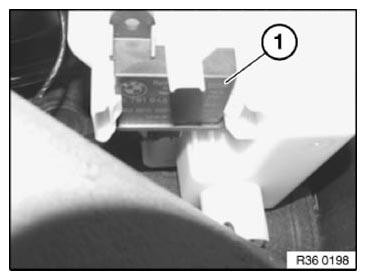

Fig 1: Identifying RDC Transmitter

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

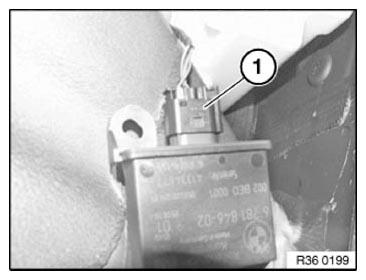

Fig 2: Identifying RDC Transmitter Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
