36 11 123 Removing and installing/replacing an RDC trigger transmitter (rear)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release rear WHEEL ARCH PANEL

Disconnect plug connection (1).

Press catch (2) together and swing out RDC transmitter (3).

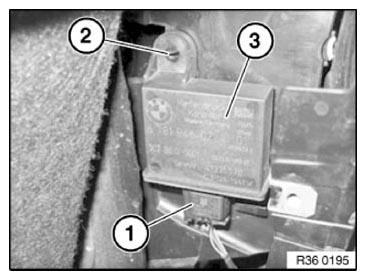

Fig 1: Identifying RDC Transmitter Catch And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
