36 11 115 Removing and installing/replacing RDC receiving aerial
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front left UNDERBODY PANELLING

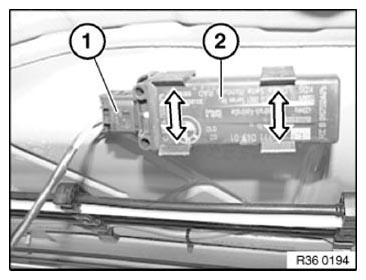

Disconnect plug connection (1).
Gently press retaining tabs apart in direction of arrow and remove RDC aerial (2).
