36 11 105 Removing and installing RDC (Tire Pressure Control) control unit (Low Cost)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Release rear lower bumper panel (1) and raise slightly.

Disconnect plug connection (2).

Push the retaining tabs (3) apart.

Pull out TPC control unit.

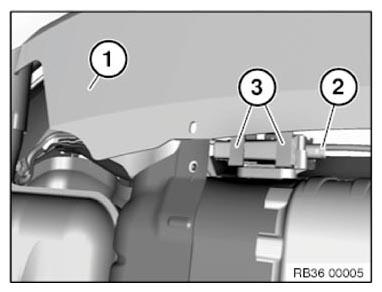

Fig 1: Identifying Rear Lower Bumper Panel Plug Connection And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING
