34 11 020 Removing and installing/replacing left or right front brake caliper

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).

Necessary preliminary tasks:

Remove WHEELS .
Read and comply with GENERAL INFORMATION .

Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Locating Pedal Support

Courtesy of BMW OF NORTH AMERICA, INC.

Pull brake hose out of both holders (1).

IMPORTANT: Grip brake hose at square head (2) so that connecting piece can not rotate in retaining bracket.

Disconnect brake hose from brake line (3).

Installation note:

Tightening torque 34 32 1AZ .

Fig 2: Identifying Brake Caliper, Brake Line, Brake Hose Square Head And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Detach brake hose from brake caliper (4).

Installation note:

Tightening torque 34 32 2AZ .

IMPORTANT: Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

NOTE: First tighten brake hose on brake caliper.
Move wheels into straight-ahead position.
Insert brake hose in bracket and screw onto brake pipe.

Unscrew guide bolts (1).

Remove brake caliper by pulling upwards.

Installation note:

Clean guide screws only; do not grease.

Check threads.

Replace all guide screws which are not in perfect condition.

Tightening torque 34 11 4AZ .

IMPORTANT: After completing work: BLEED BRAKING SYSTEM

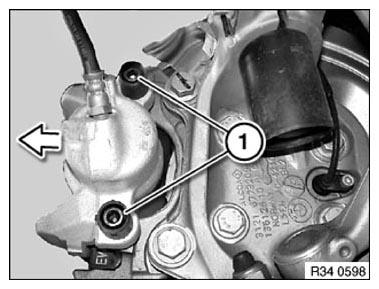

Fig 3: Lifting Out Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.
