51 12 828 Removing and installing/replacing guide for bumper, rear left or right

Necessary preliminary tasks:

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Version with TV function:

Feed aerial/antenna (1) out of guides (3) and through opening (2).

Installation note:

Make sure aerial/antenna is laid correctly.

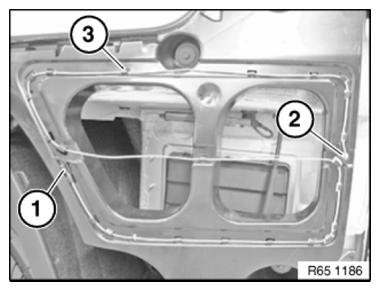

Fig 1: Identifying Aerial/Antenna And Guides With Opening

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Unscrew nuts (3).

Take off holder (4).

Tightening torque 51 12 3AZ .

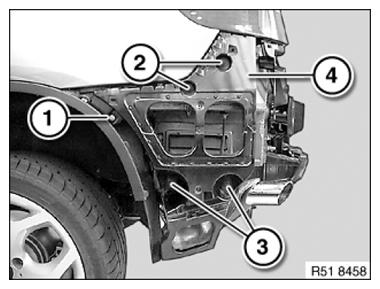

Fig 2: Identifying Bumper Holder, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides in area (A) of bracket (1) must not be damaged.

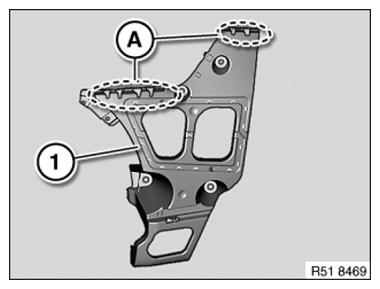

Fig 3: Identifying Bracket And Guiding Area

Courtesy of BMW OF NORTH AMERICA, INC.
