32 31 003 Removing and installing/replacing upper section of steering column trim

Special tools required:

Move steering column in "bottom" and "extended" position.

IMPORTANT: Risk of damage!
Unclip steering column trim (1) at side with special tool 00 9 323 .

Fig 1: Uncoupling Steering Column Trim With Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt steering column trim (1) towards front.

Unclip steering column gap cover (2) from steering column trim (1).

Installation:

Tilt steering column trim towards rear, align by way of locks to lower section (of steering column trim) and press down.

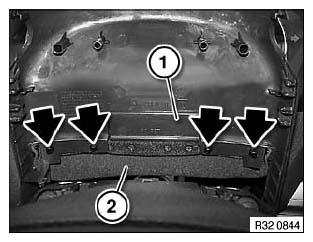

Fig 2: Uncoupling Steering Column Gap Cover From Steering Column Trim

Courtesy of BMW OF NORTH AMERICA, INC.
