61 31 117 Removing and installing/replacing power window switch (driver's side)

Special tools required:

NOTE:

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

Lever power window switch (1) with special tool 00 9 317 in direction of arrow out of armrest.

Installation:

Make sure power window switch (1) is correctly engaged in armrest.

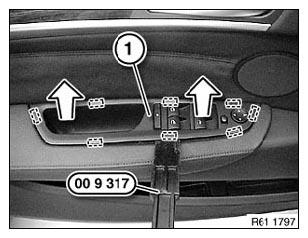

Fig 1: Lever Power Window Switch (1) With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove power window switch.

Installation:

Make sure retainers (2) are correctly seated on power window switch.

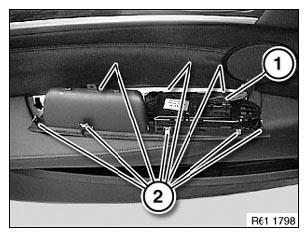

Fig 2: Identifying Retainers And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
