64 53 517 Replacing desiccant insert for A/C system

WARNING: Risk of injury!
Refrigerant circuit is under high pressure!
Follow safety instructions for handling R 134a refrigerant , see 64 50... Safety instructions for handling refrigerant R134a .
Follow safety instructions for handling refrigerant oil , see 64 50... Safety instructions for handling refrigerant oil
Avoid contact with refrigerant and refrigerant oil.

IMPORTANT: Risk of damage!
Restart engine only when A/C system has been correctly filled.
Follow instructions for opening and replacing parts in refrigerant circuit! See 64 52... Instructions for opening and replacing parts in refrigerant circuit .
If A/C system is opened for more than 24 hours:
Replacing drier insert for A/C system

Necessary preliminary tasks:

Remove condenser , see 64 53 551 Removing and installing or replacing condenser for A/C system .

Remove cover cap (1) from condenser (2).

Fig 1: Identifying Cover Cap And Condenser

G04761898

Courtesy of BMW OF NORTH AMERICA, INC.

Press sealing cap (1) inwards and remove circlip (2).

Fig 2: Identifying Sealing Cap And Remove Circlip

G04761899

Courtesy of BMW OF NORTH AMERICA, INC.

With assistance of a screwed-in screw (1), remove sealing cap from condenser (3).

Fig 3: Identifying Condenser And Screw

G04761900

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings (1) of sealing cap (2) and coat with refrigerant oil.

Fig 4: Identifying Sealing Rings And Sealing Cap

G04761901

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Removal is made more difficult if rib (2) is damaged!

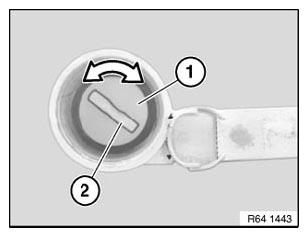

Carefully pull out desiccant insert (1) with a pair of wide pliers on rib (2).

Fig 5: Identifying Rib Location

G06213813

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Evacuate and fill A/C system , see 64 50 009 Drawing off, evacuating and filling A/C system (R 134a) .
