12 61 280 Replacing oil pressure switch (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition
Remove intake air manifold . See 11 61 050 REMOVING AND INSTALLING AIR INTAKE MANIFOLD (S65) .

Unlock plug and remove

Remove oil pressure switch.

Installation:

Tightening torque, 13 62 2AZ . See 13 62 SENSORS (S65)

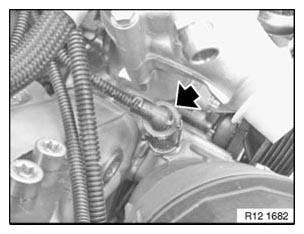

Fig 1: Locating Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check and clear fault memory.
