00...... Raising vehicle with trolley jack

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Observe the following trolley-jack-related instructions:
  1. Use only BMW-distributed/approved trolley jacks which have rubber plate contact points.
  2. Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
  3. Check the rubber plate on the trolley jack prior to each use, replacing if necessary.
Fig 1: Identifying Trolley Jack
G04749223Courtesy of BMW OF NORTH AMERICA, INC.
WARNING: The vehicle may be raised with a trolley jack only at the following jacking points!

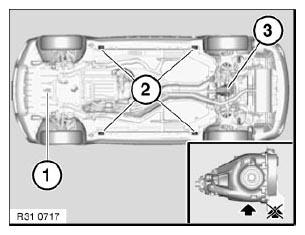

Fig 2: Identifying Car Jacking Point Points
G06178333Courtesy of BMW OF NORTH AMERICA, INC.
  1. Car jacking point
  2. Side car jacking points
  3. Rear differential

    Risk of damage: It is not permitted to raise the vehicle at the rear differential cover!
