Becker & Sohne twin-strut underfloor platform

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

The BMW multi-trailer can only be raised if it is supported at right angles to the direction of travel. For raising, use the high additional supports (1) of Becker & Sohne.

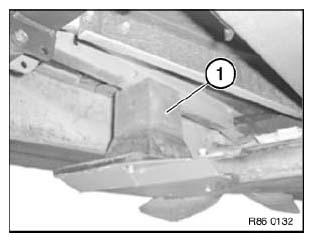

Fig 1: Identifying Underfloor Platform Supports
G04725312Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION: Also lash the BMW multi-trailer to the flat girder bridges of the lifting platform. Flag the protruding tow hitch and the drawbar member of the BMW multi-trailer conspicuously so as to prevent injury, e.g. with a red cloth.
