66 31 100 Removing and installing/replacing longitudinal dynamics module

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection).

Necessary preliminary tasks:

Remove Control Unit For Car Access System

Release bolts (1) and disconnect associated plug connection.

Remove longitudinal dynamics module (2).

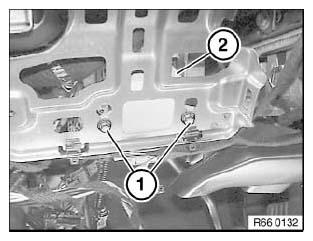

Fig 1: Identifying Longitudinal Dynamics Module And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
