33 17... Replacing rubber mount (with hydraulic damping)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 4 281
33 4 351
33 4 357
33 4 358
33 4 465
33 4 466

Withdrawing rubber mount:

Pull out rubber mount with special tools 33 4 351, 33 4 281, 33 4 466 and 33 4 465.

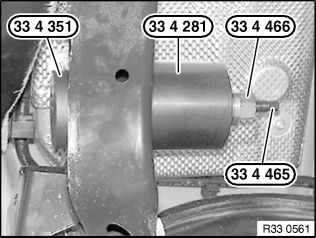

Fig 1: Special Tools (33 4 351), (33 4 465), (33 4 281) And (33 4 466)

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount:

IMPORTANT: Coat bearing bushing in rear axle carrier and new rubber mount with Circolight.

Draw in rubber mount with end shown from front into rear axle carrier. In so doing, make sure that the arrows on the rubber mount point upwards.

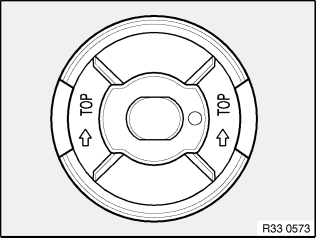

Fig 2: Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Align special tool 33 4 358 by means of openings to rubber mount.

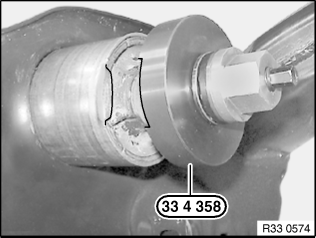

Fig 3: Special Tool (33 4 358)

Courtesy of BMW OF NORTH AMERICA, INC.

Draw in rubber mount (1) with special tools 33 4 357, 33 4 358, 33 4 466 and 33 4 465 as far as it will go.

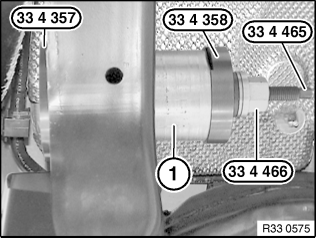

Fig 4: Rubber Mount, Special Tools (33 4 357), (33 4 358), (33 4 465) And (33 4 466)
