61 61 270 Removing and installing/replacing bracket for windscreen wiper system complete with motor

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both Wiper Arms
Remove Lower Section Of Microfilter Housing
Remove Cowl Panel Cover
Remove both Tension Struts from spring strut dome

Release screws (2) from left heater bulkhead (3).

Remove left heater bulkhead (3) towards top.

Unclip cable (1) for wiper motor from holder.

Release screws (5) for wiper bracket (4).

For tightening torque refer to 61 61 6AZ in 61 61 WINDSCREEN WIPERS .

Remove wiper bracket (4) upwards.

Disconnect plug for wiper motor.

Fig 1: Identifying Screws, Heater Bulkhead, Cable And Wiper Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber mount (1) and rubber guide (3) must not be missing.

Rubber guide (3) must be correctly seated in guide (2).

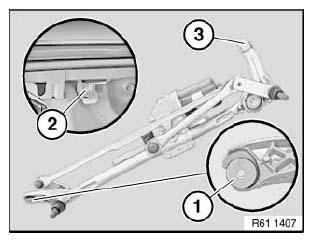

Fig 2: Identifying Rubber Mount, Rubber Guide And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Before fitting the wiper arms, allow the windscreen wiper motor to run into the rest position.

To ensure that the windscreen wiper system functions properly, Check/Adjust the contact angle of the wiper arms to the windscreen.
